TS Flange - PVC Din Standard PN10 Water Supply Fittings

Location:China, Zhejiang, Taizhou
Business Type:Manufacturer, Exporter
Minimum order quantity:30 boxes
Price:Consultation
Packing details:Consultation
Delivery time:Deliver on time
Payment method:30% deposit, balance paid before shipment
0
Views: 474
Contact Inquiry PDF Download

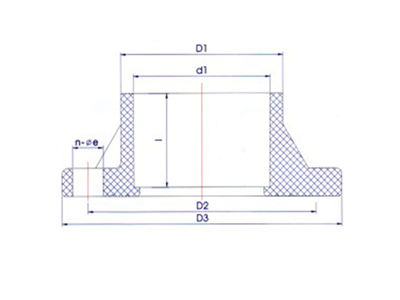

  • Dimensions

    size

    Nom

    d1

    D2

    D3

    DIN/GB
    d1

    BS
    d1

    ANSI
    d1

    JIS
    d1

    I

    n-φe

    20mm(1/2")

    31

    65

    93

    20

    22

    21.34

    22

    21

    4-14

    25mm(3/4")

    36

    75

    103

    25

    26

    26.67

    26

    25

    4-14

    32mm(1")

    46.0

    85

    114

    32

    34

    33.4

    32

    21

    4-14

    40mm(1-1/4")

    55

    100

    138

    40

    42

    42.16

    38

    23

    4-17

    50mm(1-1/2")

    58.0

    108

    140

    50

    48

    48.26

    48

    35

    4-19

    63mm(2")

    72

    125

    163

    63

    60

    60.33

    60

    43

    4-19

    75mm(2-1/2")

    85

    145

    182

    75

    76

    73.03

    76

    47

    4-19

    90mm(3")

    101

    160

    195

    90

    89

    88.9

    89

    56

    8-20

    110mm(4")

    124

    180

    215

    110

    114

    114.3

    114

    64

    8-20

    125mm(5")

    145

    195

    245

    125







    75

    8-28

    160mm(6")

    175

    240

    280

    160

    168.3

    168.3

    165

    92

    8-24

    200mm(8")

    222

    293

    334

    200

    219.1

    219.1

    216

    115

    8-21
