New Type Ball Valve Pvc Valves

Location:China, Zhejiang, Taizhou
Business Type:Manufacturer, Exporter
Minimum order quantity:30 boxes
Price:Consultation
Packing details:Consultation
Delivery time:Deliver on time
Payment method:30% deposit, balance paid before shipment
0
Views: 1,197
Contact Inquiry PDF Download
  • Number: WK001

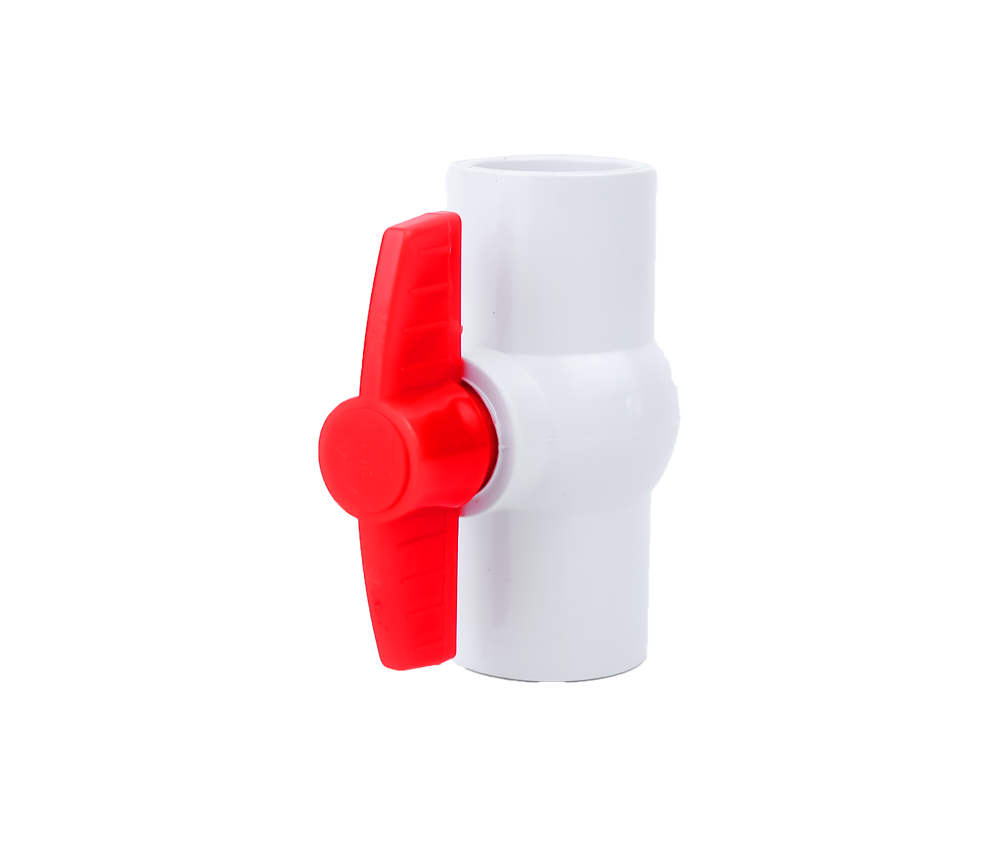

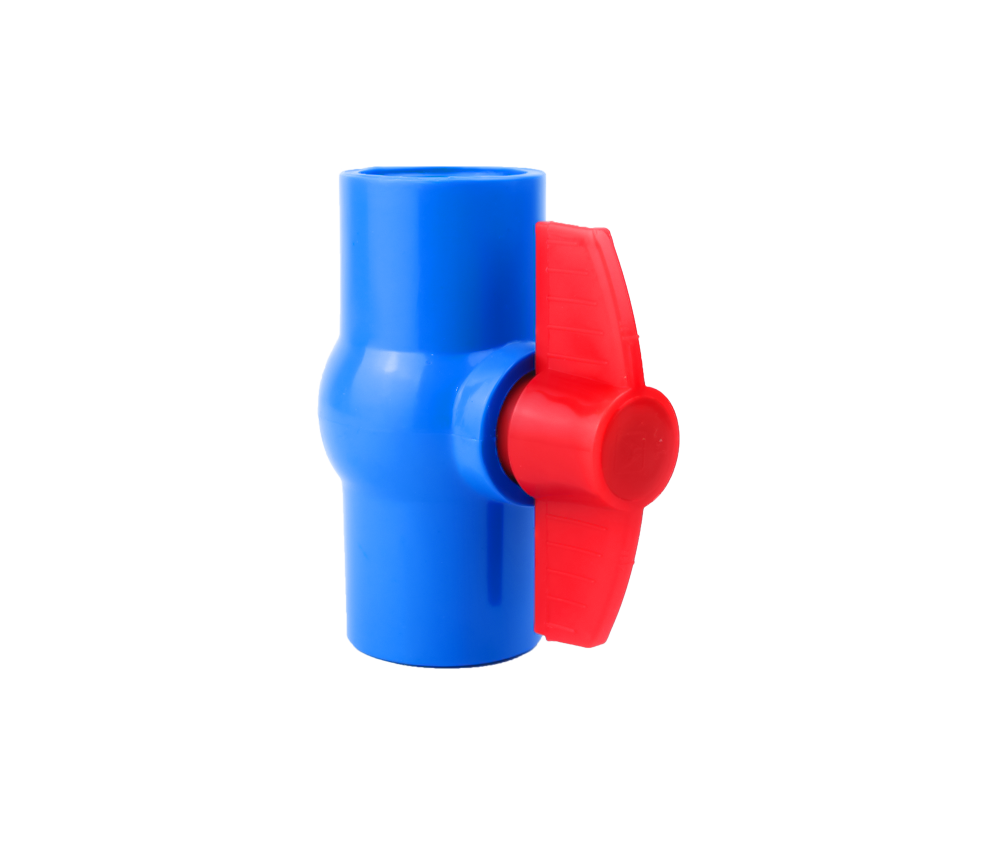

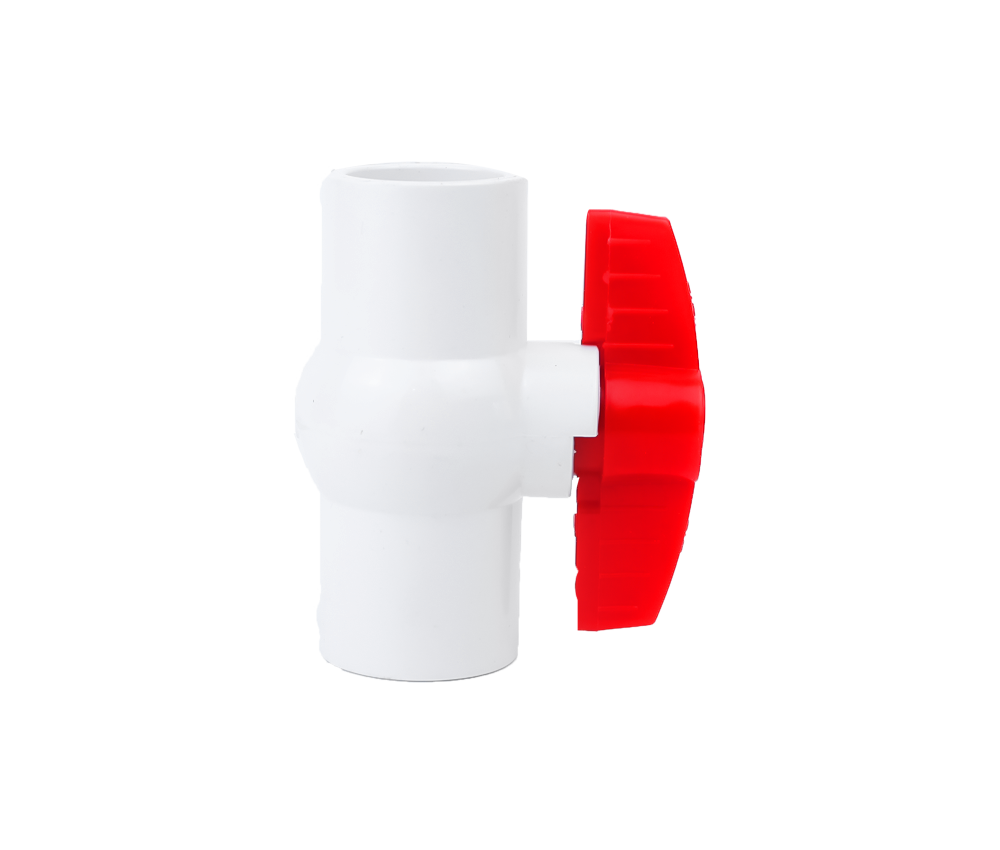

    Name: Pvc Compact ball valve

    Dimensions: 1/2","3/4","1","1-1/4","1-1/2","2","2-1/2","3","4","6", 8“

    Material: UPVC



    PART

    MATERIAL

    QTY

    Body

    UPVC

    1

    Seat Seal

    TPE

    2

    O-Ring

    NBR

    1

    Ball

    PP

    1

    Handle

    PP、ABS

    1

    Cap

    PP、ABS

    1





    Dimensions

    SIZE

    DIN/GB

    Outer Dia.Of Pipe

    BS

    Outer Dia.Of Pipe

    ANSI

    Outer Dia.Of Pipe

    JIS

    Outer Dia.Of Pipe

    BSPT

    Thd./in

    NPT

    Thd./in

    DN15mm(1/2")

    20

    22

    21.34

    22

    14

    14

    DN20mm(3/4")

    25

    26

    26.67

    26

    14

    14

    DN25mm(1")

    32

    34

    33.4

    32

    11

    11.5

    DN32mm(1-1/4")

    40

    42

    42.16

    38

    11

    11.5

    DN40mm(1-1/2")

    50

    48

    48.26

    48

    11

    11.5

    DN50mm(2")

    63

    60

    60.33

    60

    11

    11.5

    DN65(2 -1/2")

    75

    76

    73.03

    76

    11

    8

    DN80mm(3")

    90

    89

    88.9

    89

    11

    8

    DN100mm(4")

    110

    114

    114.3

    114

    11

    8

    DN150mm(6")

    160

    165

    168.3

    165

    11

    8

    DN200mm(8")

    200

    216

    219.1

    216

    11

    8
