Union Ball Valve

Location:China, Zhejiang, Taizhou
Business Type:Manufacturer, Exporter
Minimum order quantity:30 boxes
Price:Consultation
Packing details:Consultation
Delivery time:Deliver on time
Payment method:30% deposit, balance paid before shipment
0
Views: 28
Contact Inquiry PDF Download
  • Number: WK004

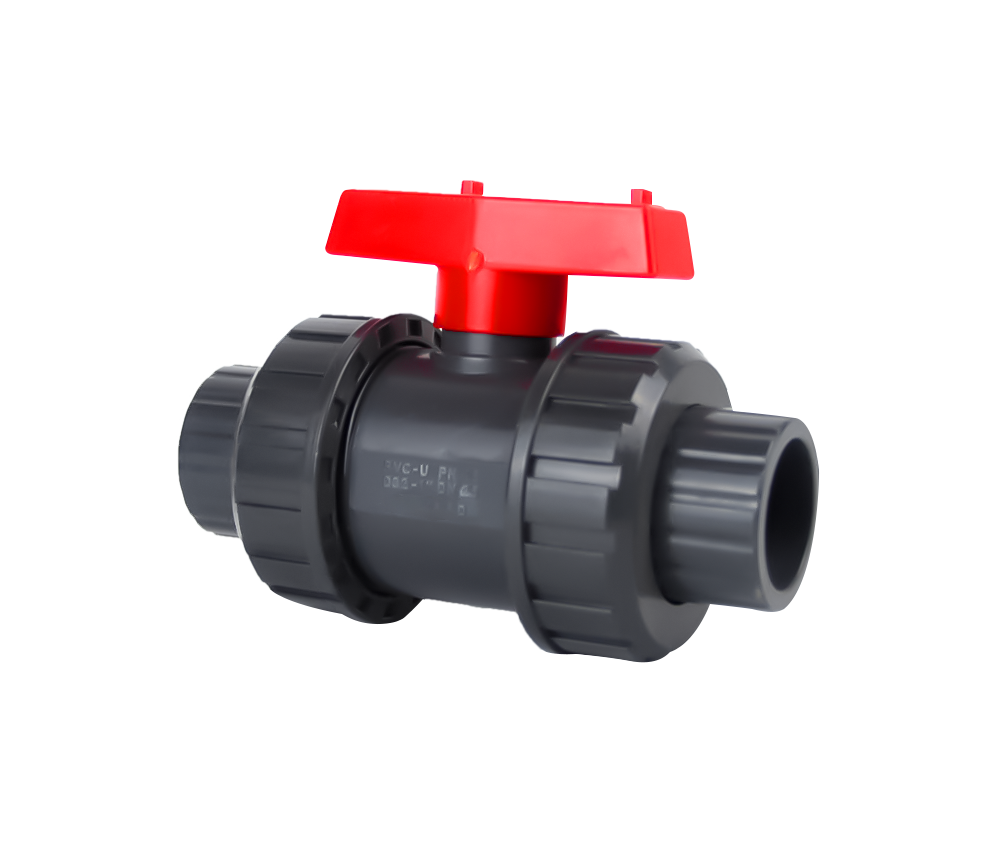

    Name: Double Union ball valve

    Dimensions: 1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"

    Standard: DIN,ANSI,BS

    Material: UPVC



    Dimensions

    Size

    DIN/GB
    Outer Dia.Of Pipe

    BS
    Outer Dia.Of Pipe

    ANSI
    Outer Dia.Of Pipe

    JIS
    Outer Dia.Of Pipe

    BSPT
    Thd./in

    NPT
    Thd./in

    DN15mm(1/2")

    20

    22

    21.34

    22

    14

    14

    DN20mm(3/4")

    25

    26

    26.67

    26

    14

    14

    DN25mm(1")

    32

    34

    33.4

    32

    11

    11.5

    DN32mm(1-1/4")

    40

    42

    42.16

    38

    11

    11.5

    DN40mm(1-1/2")

    50

    48

    48.26

    48

    11

    11.5

    DN50mm(2")

    63

    60

    60.33

    60

    11

    11.5

    DN65(2 -1/2")

    75

    76

    73.03

    76

    11

    8

    DN80mm(3")

    90

    89

    88.9

    89

    11

    8

    DN100mm(4")

    110

    114

    114.3

    114

    11

    8
